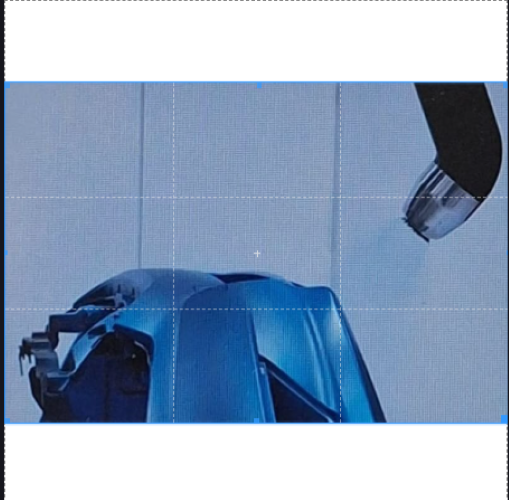

Bell Painting Applicator

Bell Painting Applicator Price And Quantity

• Minimum Order Quantity 1 Piece
• Price 100000.0 INR/Piece

Bell Painting Applicator Product Specifications

• Type Rotary Bell Painting Applicator
• Surface Automotive plastics, metals, large surfaces
• Voltage 220-240V AC, 50/60 Hz
• Material Stainless Steel, Corrosion-resistant engineering plastics
• Protection System Enclosed housing, static discharge protection
• Technology Electrostatic High-Speed Bell Cup Atomization
• Portable No, typically fixed or robot-mounted
• Power Source Electric, Pneumatic (for rotation and paint feed)
• Brush Number N/A (No brush, utilizes bell/cup design for paint application)
• Power Consumption Approximately 0.5-2 kW depending on model
• Attributes High-transfer efficiency, fine atomization, uniform coating

• Operating Environment Controlled, filtered spray booth
• Bell Speed Range 20,000-70,000 RPM
• Mounting Type Robot arm or fixed frame mount
• Paint Compatibility Solvent-based, water-based, high solids, 2K paints
• Paint Feed Rate Adjustable, 100-500 ml/min
• Weight Approximately 3-6 kg
• Fluid Inlet Pressure 2-6 Bar
• Air Consumption 200-400 NL/min
• Finish Quality High-gloss, even, defect-minimized finish
• Noise Level <75 dB(A)
• Cleaning System Automatic internal and external cleaning circuits
• Spray Pattern Adjustability Yes, via air shroud and bell speed control
