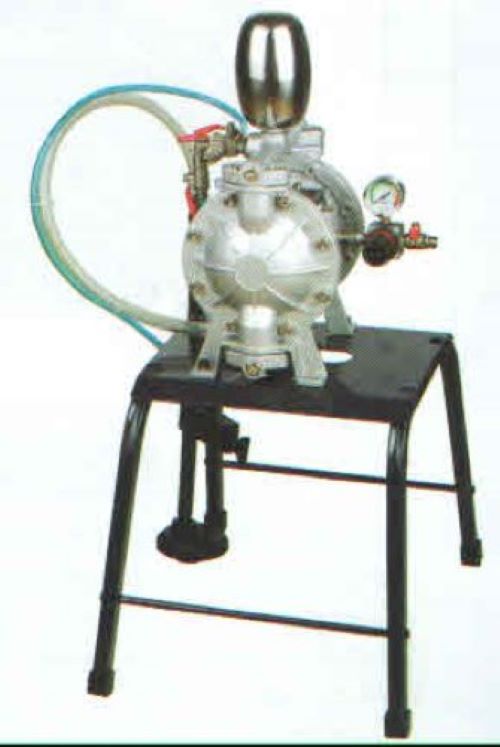

Pneumatic Double Diaphragm Pumps

Name: Pneumatic Double Diaphragm Pumps
Brand: M/S TECHNOCHEM INDUSTRIES
Price: 38500.00 INR
Availability: InStock

38500.00 INR/Piece

Get a Price/Quote

Product Details:

Discharge Pressure Up to 8 bar
Flow Rate 15 LPM to 650 LPM (depending on pump size)
Voltage Pneumatically Operated (No electrical voltage required)
Head Size Up to 84 meters
Mounting Type Base Mounted/Stationary
Speed Variable (controlled by air supply)
Inlet/Outlet 1/2 to 3 BSP/NPT/FNPT (varies by model)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Pneumatic Double Diaphragm Pumps Price And Quantity

Price 38500.00 INR/Piece
Minimum Order Quantity 1 Piece

Average Air Consumption 0.31.4 m/min
Air Inlet Connection 1/4" to 1/2" BSP
Weight 7 kg to 62 kg (depending on model)
Typical Viscosity Handling Up to 10,000 cps
Maximum Particle Size Passage Up to 9.4 mm (varies by size)
Installation Orientation Horizontal or Vertical
Diaphragm Material Options PTFE, Buna-N, Neoprene, Santoprene
Maintenance Tool-free disassembly, Easy serviceability

Pneumatic Double Diaphragm Pumps Product Specifications

Mounting Type Base Mounted/Stationary
Speed Variable (controlled by air supply)
Capacity From 1 m/hr to 30 m/hr
Flow Rate 15 LPM to 650 LPM (depending on pump size)
Voltage Pneumatically Operated (No electrical voltage required)
Color Black
Head Size Up to 84 meters
Fuel Type Air/Oil Free Compressed Air
Priming Self-priming
Usage Industrial fluid transfer, chemical handling, water treatment, paints, acids, solvents
Suction Type Positive Suction
Material Aluminum, Polypropylene, PVDF, Stainless Steel, Cast Iron
Discharge Pressure Up to 8 bar
Structure Double Diaphragm Pump
Application Chemical, Paint, Food, Ceramic, Mining, Water Treatment
Pressure Up to 8 bar (116 psi)
Power Compressed Air (3-8 bar)
Max Suction Up to 7 meters (Self-priming)
Features Dry running, Solids handling, Leak-free design, Explosion proof, Portable
Pump Type Pneumatic Double Diaphragm
Working Temperature -10C to 80C
Caliber 12 mm to 80 mm
Standard ISO, CE
Control System Manual or Pneumatic Control
Seals Type PTFE, Nitrile, EPDM (depending on model)
Size 2 to 3 Inches
Theory Double Diaphragm
Noise Level Around 75 dB (depends on model and air supply)
Inlet/Outlet 1/2 to 3 BSP/NPT/FNPT (varies by model)
Product Type Pneumatic Double Diaphragm Pumps

Average Air Consumption 0.31.4 m/min
Air Inlet Connection 1/4" to 1/2" BSP
Weight 7 kg to 62 kg (depending on model)
Typical Viscosity Handling Up to 10,000 cps
Maximum Particle Size Passage Up to 9.4 mm (varies by size)
Installation Orientation Horizontal or Vertical
Diaphragm Material Options PTFE, Buna-N, Neoprene, Santoprene
Maintenance Tool-free disassembly, Easy serviceability

Pneumatic Double Diaphragm Pumps Trade Information

Payment Terms Telegraphic Transfer (T/T), Cheque
Supply Ability 2 Piece Per Week
Delivery Time 1 Week
Packaging Details Carton Box.
Main Export Market(s) Western Europe, Asia, Australia, Middle East, Central America, South America, Eastern Europe, North America, Africa
Main Domestic Market All India

Product Description

We have gained in-depth domain knowledge of manufacturing and distributing Pneumatic Double Diaphragm Pumps. We manufacture these by using cutting-edge technology from the highest grade of basic components and offer these in various specifications. These pumps are used in paints, pharma, ceramic, industries and many other fluid handling applications. These are offered at leading industry rates to our patrons.

Features:

Dependable efficacy
Seamless performance
Structural stability

Specifications:

Model	Double diaphragm pump 11604 A
Use	operation on pneumatic air, Paint Transfers continuously to gun
Ratio	1.1
Operating Pressure	5 kgf/cm²
Max Paint Output	75 Lr/Min

Versatility Across Applications

These pumps provide reliable performance for diverse sectors including chemical processing, water treatment, food, ceramics, and mining. Supporting various inlet/outlet connections, wide viscosity handling, and multiple mounting options, they address complex fluid transfer needs with flexibility and ease.

Durability Meets Easy Maintenance

Crafted from sturdy materials like stainless steel, PVDF, and cast iron, the structure ensures longevity, while tool-free disassembly simplifies maintenance. This design reduces downtime, allowing for swift diaphragm and seal replacement, ideal for busy industrial environments.

Efficiency and Safety Built In

Driven by compressed air, these pumps are explosion-proof and suitable for hazardous or volatile environments. Variable speed control and dry-running capability enhance operational safety and efficiency, all while maintaining low noise levels for improved workplace comfort.

FAQ's of Pneumatic Double Diaphragm Pumps:

Q: How does a pneumatic double diaphragm pump operate?

A: Pneumatic double diaphragm pumps use compressed air (3-8 bar) to move diaphragms in a reciprocating motion, enabling the transfer of liquids. No electrical supply is required, making them inherently safe for explosive or hazardous environments.

Q: What materials are available for diaphragms and seals and why do they matter?

A: Diaphragms can be made from PTFE, Buna-N, Neoprene, or Santoprene to suit different chemicals and abrasives. Seal options include PTFE, Nitrile, and EPDM. The right material selection ensures compatibility and longevity, especially with aggressive or corrosive fluids.

Q: When is it ideal to use this pump type for industrial applications?

A: These pumps are ideal whenever leak-free, explosion-proof, and portable transfer of fluids with varying viscosities or solid particles is required-such as in chemical processing, water treatment, paint handling, or mining.

Q: Where can the pump be installed and what orientations are supported?

A: The pump can be base mounted or installed horizontally or vertically, offering flexibility in tight or complex industrial setups. This allows adaptation to available space and existing infrastructure.

Q: What is the process for pump maintenance and servicing?

A: Maintenance is hassle-free, thanks to tool-free disassembly. Regular inspection and diaphragm replacement are simplified, minimizing downtime and ensuring uninterrupted operation in demanding environments.

Q: What are the key benefits of using pneumatic double diaphragm pumps?

A: Key benefits include dry-running capability, solids handling, leak-free performance, variable flow control, explosion-proof operation, and easy serviceability-delivering safe and efficient industrial fluid transfer.

Q: How does the pump handle different fluid types and particle sizes?

A: The pump passes particles up to 9.4 mm and handles viscous fluids up to 10,000 cps, making it suitable for slurries, chemicals, solvents, and other challenging fluids encountered in industrial applications.
